Straight-Run Stairs
(SR-Series)
|
) SR-100 Series |
) SR-100 Series |
) SR-100 Series Half-Log Treads, Full-Round Log Stringers Mortise-and-Tenon Balusters |
) SR-200 Series Half-Log Treads, Half-Log Stringers |
) SR-300 Series Half-Log Treads, Timber Stringers |
) SR-400 Series Timber Treads, Closed Riser |
|
SR-100 Series - Straight-Run stair with half-log treads notched into full-round log stringers. SR-200 Series - Straight-Run stair with half-log treads mortised between half-log stringers. SR-300 Series - Straight-Run stair with half-log treads mortised between 3" x 11" timber stringers. SR-400 Series - Straight-Run stair with 2" thick waney-edge tread mortised between 3" x 11" stringers. Closed-riser. |

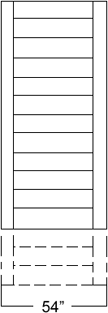

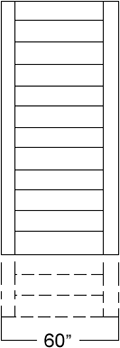

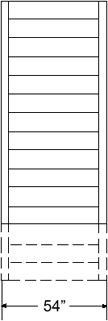

| The drawings below are to 1/4" = 1' scale so they can be cut out and used on floor plans. Please refer to Straight-Run - Specifications to determine the appropriate number of treads for your stairs. Allow 1 1/2" minimum hand clearance on all sides when framing through floor stair wells. If the following pdf's do not print to size click here. |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
|
|
|
Straight Run Stairs -Specifications |
| SR-100 Series: 136, 138, 142**
Straight run stair with half-log treads notched into full-round log stringers.
|
| SR-200 Series: 236, 242, 248**
Straight run stair with half-log treads mortised between half-log stringers.
|
| SR-300 Series: 336, 342, 348**
Straight run stair with half-log treads mortised between 3" x 11" timber stringers.
|
| SR-400 Series: 436, 442, 448**
Straight run with 2" thick waney-edge tread mortised between 3" x 11" stringers.
|
**Stairs in the SR Series do not include railing and posts. Refer to Log Railings & Posts sheet. For a verbal quote, please speak to a StairMeister representative. For a written estimate, please send the following: floor plan, plan view of stair, floor framing plans for both levels, and a cross section through the house at the stair location If you have any questions, you can reach us at (303) 440-2994, or Fax (303) 440-0736. |
